Glass Solvent Vacuum set

  • Minimal Pembelian : 1 Unit
  • Maksimal Pembelian : 100 Unit
  • Pengiriman : 60 Hari Setelah Pembayaran
  • Lokasi : Jawa Barat - Depok
  • Harga : KONTAK KAMI
  • Dilihat : 35 Kali
  • Pembaruan : 16-01-2023 12:05
Dapatkan Spesifikasi Harga Glass Solvent Vacuum set Produk Terbaik dari PT. SITOHO LAMSUKSES - INDONESIA Pusat Sanitarian Kit, Boarding Kit, Alat Uji Emisi, Alat Uji Makanan, Alat Monitor Udara, dan Alat Kesehatan Lingkungan Lainnya.

Produk Detail

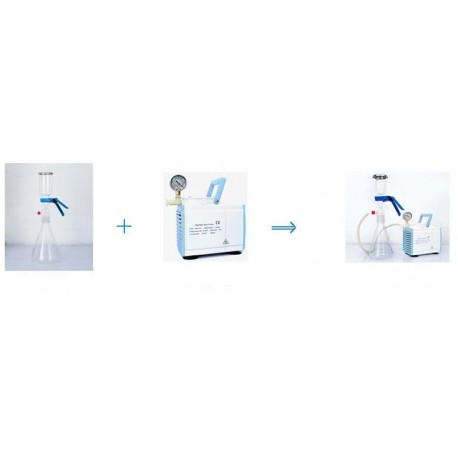

 Jual Glass Solvent Filtration Vacuum Set di Indonesia. Glass Filtration Set adalah alat sampling air dengan system penyaringan dan pompa vakum.  Vacuum pump dan Glass Filtration Set diameter filter 47mm, Funnel Glass 500ml sehingga penyaringan sampel air sangat cepat. Informasi harga Glass Filtration Set dapat di email ke andrewsitoho@gmail.com

Glass Solvent Vacuum Set



NO Description M033A-5ML M050A-5ML M050B-5ML M100A-5ML
1 Glass Solvent Filter
▪ Type 5002 5002 5002 5002
▪ Branch Single Single Single Single
▪ Funnel Size 500 ml 500 ml 500 ml 500 ml
▪ Funnel Valve Glass Glass Glass Glass
▪ Support Screen Pyrex Glass Pyrex Glass Pyrex Glass Pyrex Glass
▪ Membrane Filter (Diameter) 47 mm 47 mm 47 mm 47 mm
▪ Screen Pore Size 10 µm 10 µm 10 µm 10 µm
▪ Connection Ground Joint Ground Joint Ground Joint Ground Joint
▪ Collection Bottle 2000 ml 2000 ml 2000 ml 2000 ml
▪ Working Temperature under 121℃ under 121℃ under 121℃ under 121℃
2 Diaphragm Vacuum Pump
▪ Vacuum Pump Type 033A 050A 050B 100AT
▪ Speed of Evacuation (L/min) 20 30 20/30 60
▪ Ultimate Pressure Vacuum ≥0.08Mpa 200mbar ≥0.08Mpa 200mbar ≥0.095Mpa 50mbar ≥0.08Mpa 200mbar
▪ Voltage Rating 230Vac 50Hz 230Vac 50Hz 230Vac  50Hz 230Vac 50Hz
▪ Motor Power (W) 160 160 160 160
▪ Inlet (mm) Φ6 Φ6 Φ6 Φ6
▪ Outlet (mm) Silencer Φ6 Silencer Φ6
▪ Pump Head 1 1 2 2
▪ Temp of body (℃） <55 <55 <55 <55
▪ Dimensions (LxBxH) (mm) 210x120x235 210x160x235 300x120x235 300x160x235
▪ Weight (Kgs) 7.5 10 10 10
▪ Diaphragm NBR NBR NBR NBR
▪ Valves NBR NBR NBR NBR
▪ Noise Level (DB) <50 <50 <50 <50
▪ Temperature of working (℃） 7 - 40 7 - 40 7 - 40 7 - 40
