Electrical Fusion Furnace

  • Minimal Pembelian : 1 Unit
  • Maksimal Pembelian : 100 Unit
  • Pengiriman : 60 Hari Setelah Pembayaran
  • Lokasi : Jawa Barat - Depok
  • Harga : KONTAK KAMI
  • Dilihat : 14 Kali
  • Pembaruan : 16-01-2023 13:52
Dapatkan Spesifikasi Harga Electrical Fusion Furnace Produk Terbaik dari PT. SITOHO LAMSUKSES - INDONESIA Pusat Sanitarian Kit, Boarding Kit, Alat Uji Emisi, Alat Uji Makanan, Alat Monitor Udara, dan Alat Kesehatan Lingkungan Lainnya.

Produk Detail

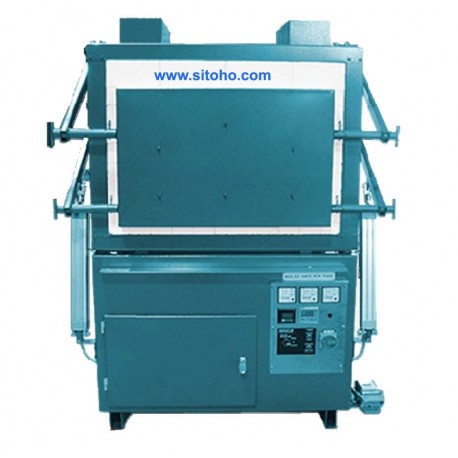

 Fusion Furnace

Type : EFF-25


Specification:

▪ Construction : Cabinet of 5 mm zinc anneal steel lined
      with insulating firebrick. Backed with
      superwool insulation board.
▪ Muffle Dimension : 25/36 Place (Mufle #7)
    : 300mm high x 600mm wide x 580mm deep
▪ Heating Elements   12 x Silicon Carbide elements rated at
      24 kW 3 Phase. Power supply is per a multi
      tapped double wound transformer
▪ Door Operation : Pneumatic risiong. Operated by foot control
▪ Temperature Control : Electronic, Automatic control 1200°C, Type K
      Thermocouple, High Temperature alarm,
      over temperature controller
▪ Electrical Requirements : 24kW, 3 Phase
▪ Approximate overall : 1895mm high x 1340mm wide x 1020mm deep
      (Dimensions with door)
