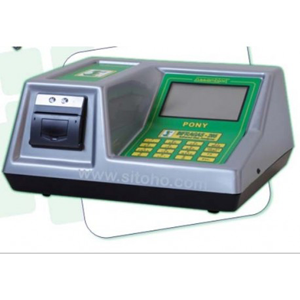

Type : Infragas-205
Brand : Assemblad S.r.l (Italy)
Specification :
| Measure | Range | Resolution | ||
| ▪ | CO | : | 0 ÷ 10 Vol% | 0,001 Vol% |
| ▪ | CO2 | : | 0 ÷ 20 Vol% | 0,01 Vol% |
| ▪ | HC | : | 0 ÷ 15000 ppm | 1 ppm |
| ▪ | O2 | : | 0 ÷ 25 Vol% | 0,01 Vol% |
| ▪ | CO Corr. | : | 0 ÷ 15 Vol% | 0,01 Vol% |
| ▪ | Nox | : | 0 ÷ 5000 ppm | 1 ppm |
| ▪ | Lambda | : | 0,5 ÷ 1,5 | 0,01 |
| ▪ | RPM | : | 0 ÷ 9999 rpm | 1 rpm/1′ |
| ▪ | Oil temperature | : | 0 ÷ 150 °C | 0,1 °C |
| ▪ | Internal temp. | : | 0 ÷ 50 °C | 0,1 °C |
| ▪ | Pressure | : | 800 ÷ 1060 mbar | |
| ▪ | Calibration | : | Automatic at the switching on | |
| ▪ | Printer | : | Built-in 24 columns thermal printer | |
| ▪ | Display | : | Backlighted Graphic LCD | |
| ▪ | Measure | : | CO, CO2, HC, O2, Lambda, AFR(#) , | |
| : | Correct CO, Barometric Pressure | |||
| : | NOx (option), Oil temperature | |||
| : | RPM Counter with external opt. device | |||
| ▪ | Size / weight | : | 344x160x270mm / 4,3 kg | |
| ▪ | Power Supply | : | 12 Vcc. and 110÷230 Vac / 12 Vcc-Ext. power supply | |
| ▪ | Complete unit | : | Flexible exhaust gas probe and clamp | |
| : | External Battery cable and RS232 serial cable | |||
| : | Main power supply 230Vac | |||
| : | Keys to remove the cartridge filter | |||
| : | Water stop 206 | |||
| : | Manual books | |||
| : | Bluetooth unit-Blu Radio 210 Slave and Master | |||
| : | RPM-405 Universal counter with Oil Temperature probe |
|||
