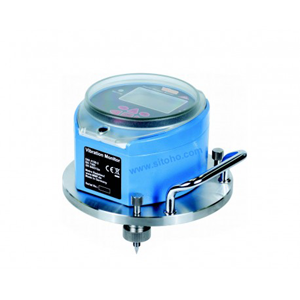

Type : VM40C

Product : mmf (Germany)

Spesifikasi alat :

Standard : DIN 4150-3, BS 7385, SN 640312a

Tranduser : Triaxial piezoelectric shear type accelerometer

Measuring Range :

a, Acceleration : 0.01 - 15 m/s²

b. Velocity : 0.01-2400 mm/s at 1 Hz 0.1-30 mm/s at 80 Hz

c. Frequency : 0.8 - 100 Hz, 0.8 - 395 Hz, 5 - 150 Hz

Display : LCD with backlight, 128 x 64 pixel, 32 x 60mm²

Display data: 3 peak/ pp values (X / Y / Z)

Data Storage : max 100.000 data

Celluler Communication :4G (LTE B3, B8, B20), 2G (E-GSM-900, DCS-1800)

USB Connection : USB 2.0 full speed via 8 pin connector

PC Software : Free software tool for archiving and report

Protection Grade : IP67 EN 60529

Dimension / Weight : 150 x 140 x 80mm / 2 kg

Accessories :

a. Battre Charge

b. USB Cable VM2x-USB

c. Tripod floor plate

d. 2G/4G celluler modem

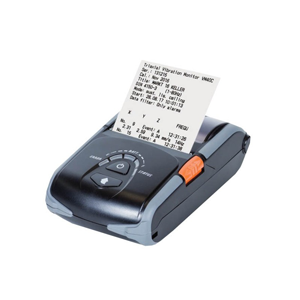

e. Mobile report printer with battery

f. Alarm Beacon with batteries
