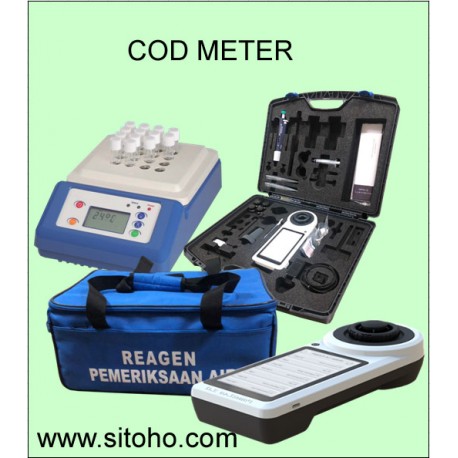

Type : PL02B-COD (Water Id - Germany)
Spesifikasi
| A | Reagent Kimia air | ||
| ▪ | COD range | : | 0-150mg/l (50 test) |
| : | 0-1500 mg/l (50 test) | ||
| B | Portable Photometer Water Analysis | ||
| ▪ | Panjang Gelombang | : | 390-950nm |
| : | 18 panjang gelombang : | ||
| 410nm, 435nm, 460nm, 485nm, 510nm, | |||
| 535nm, 560nm, 585nm, 610nm, 645nm, | |||
| 680nm, 705nm, 730nm, 760nm, 810nm | |||
| 860nm, 900nm dan 940nm | |||
| ▪ | Parameter yang diukur | : | Lebih 140 parameter (Option) |
| ▪ | Koneksi | : | WiFI, Bluetooth 4.2 |
| ▪ | Layar Monitor | : | 5.5" Layar Sentuh |
| ▪ | Kalibrasi | : | Internal kalibrasi |
| ▪ | Memory | : | Mampu menyimpan lebih 5000 data |
| ▪ | Pengaturan Jam/waktu | : | Selalu terkini (Real-Time-Clock) |
| ▪ | Mati otomatis | : | 10 menit jika tidak dioperasikan, |
| dapat disetting sesuai kebutuhan | |||
| ▪ | Panduan operator | : | Tersedia di Photometer |
| ▪ | Sumber tenaga | : | 8500 mA Li-Lo-Battery |
| ▪ | Pilihan Bahasa | : | Tersedia Bahasa Indonesia |
| C | Thermoreactor | ||
| ▪ | Reactor type | : | Dry temperature control device |
| ▪ | Number of vial cells | : | 16 cells shafts for reaction cell |
| 16mm ±0.2mm | |||
| ▪ | Temperature setting | : | 100˚C, 120˚C, 150˚C, fixed programs, |
| and 50˚C to 199˚C user setting | |||
| ▪ | Controlling accuracy | : | ±1˚C(±1 digit) |
| ▪ | Temperature stability | : | ±1˚C |
| ▪ | Heating from 25˚C to | : | 25°C to 100˚C approx. 5 min. |
| : | 25°C to 120˚C approx. 6 min. | ||
| : | 25°C to 150˚C approx.9 min. | ||
| : | 25°C to 165˚C approx.11 min. | ||
| : | 25°C to 199˚C approx. 15 min. | ||
| ▪ | Programmable Temp | : | 50˚C to 199˚C |
| ▪ | Programmable time | : | 0-18 hours, Audio signal and heating |
| stopped when the time expired | |||
| ▪ | Temp. correction | : | ±9˚C adjustment for thermoblock |
| ▪ | Ambient temperature | : | 10~50˚C |
| ▪ | Overheating protector | : | Yes |
| ▪ | Power supply | : | 220 VAC ±10%, 50/60 Hz |
| D | Perlengkapan Alat | ||
| ▪ | Plastic carrying-case with foam insert | ||
| ▪ | Glass Vial 24mm x 10ml (4 pcs) | ||
| ▪ | light shield (1 pcs) | ||
| ▪ | Vial adapter 24mm (1 pcs) | ||
| ▪ | Stirring rod 10,5cm (1 pcs) | ||
| ▪ | Plastic syringe 10ml (1 pcs) | ||
| ▪ | Professional pipette with 2 tips cap 1-10ml (1 set) | ||
| ▪ | Vial cleaning brush (1 pcs) | ||
| ▪ | Microfibre cleaning cloth for vials (1 pcs) | ||
| ▪ | Bluetooth USB dongle (1 pcs) | ||
| ▪ | Charger with cable (USB-Type-C) | ||
| ▪ | Buku petunjuk penggunaan alat | ||
