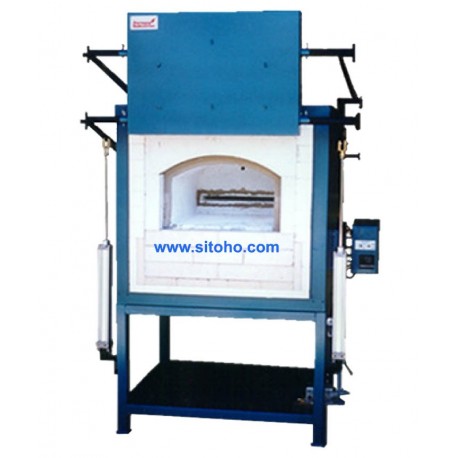

Type : ECF-50
Specification :
| ▪ | Construction | : | Cabinet of 2 & 5 mm zinc anneal steel lined |
| with insulating firebrick. Backed with Superwool | |||
| insulation board. | |||
| ▪ | Muffle Dimension | : | 200mm high x 260mm wide x 460mm deep |
| ▪ | Heating Elements | 12 x Silicon Carbide elements rated at 10.5kW/ | |
| 15kW/24kW, 3 Phase. Power supply is per a | |||
| multi-tapped double wound transformer | |||
| ▪ | Door Operation | : | Counter-balanced, rising |
| ▪ | Temperature Control | : | Electronic, Automatic control 1200°C, |
| Type “K” Thermocouple, High Temperature alarm, | |||
| over temperature controller | |||
| ▪ | Electrical Requirements | : | 10.5kW, 3 Phase |
| ▪ | Approximate overall | : | 1785mm high x 695mm wide x 830mm deep |
| (Dimensions with door) |
