Lemari Asam di lengkapi dengan Wet Scrubber yang fungsinya untuk menghisap uap (exhaust) yakni ducting. Prinsip kerjanya adalah udara dihisap dari depan pintu lemari asam, lalu dikeluarkan oleh blower hisap melalui filterisasi menuju keluar gedung.

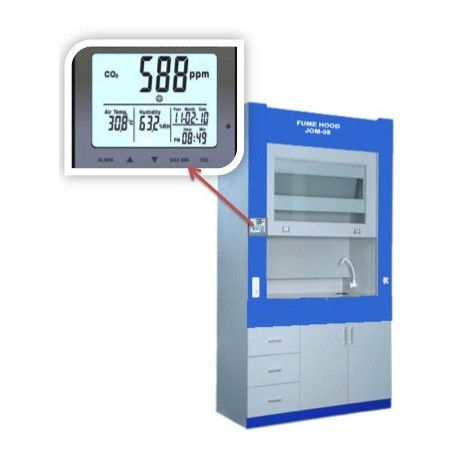

FUME HOOD + WET SCRUBBER (LEMARI ASAM)
Type : JOM-08
Brand : SLS Technology
Spesifikasi :
| a. Lemari Asam | |||
| ▪ | Housing | : | Playwood ±18mm with lamited HPL |
| ▪ | Top Table | : | Phenolic Resin |
| ▪ | Door | : | Sliding type with Clear Glass |
| ▪ | Lamp | : | TL 1 x 20 Watt |
| ▪ | Blower | : | Chemical Resistant, 1 HP, Power 220V |
| ▪ | Blower Pipe | : | PVC 6" Diameter |
| ▪ | Air Quality Meter | : | Temperature -5 °C to +50 °C |
| Humidity 0.1 % RH to 99.9 % RH | |||
| Carbon Dioxide 0 to 9,999 ppm (NDIR) | |||
| ▪ | Water Installation | : | Water Tap complete pipe PVC Wavin or Rucika |
| ▪ | Water Outlet Nozzle | : | Chemical Resistant Polypropylene Valve |
| ▪ | Sink | : | Polypropylene with bottle Trap |
| ▪ | Power Switch | : | ON/OFF for Blower |
| ▪ | Drawer | : | Use to keep the material |
| ▪ | Size | : | (P x L x T) :145 x 60 x 230 cm |
| b. Wet Scrubber | |||
| ▪ | Body material | : | Stainless steel |
| ▪ | frame/support | : | Mild steel |
| ▪ | Circulation Water line | : | PVC Pipe and Fitting |
| ▪ | Size | : | 360 x 800 x 850 mm |
| ▪ | Support type | : | Wall bracket |
| ▪ | Pipe | : | Dia 6" (inlet and outlet) |
| ▪ | Pump | : | Elektromotor 125W |
| ▪ | Daya | : | 220 V; 50 Hz |
| ▪ | Daya hisap | : | Max 9 meter |
| ▪ | Daya Dorong | : | Max 33 meter Pipa: 1" |
