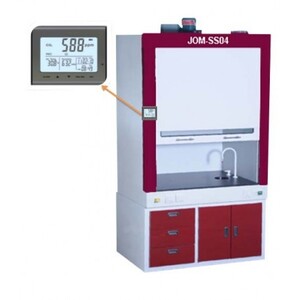

Type : JOM-SS04
Product : SLS-Tech
Spesifikasi alat :
| a. Fume Hood | |||
| ▪ | Housing | : | Stainless Steel SUS 304 |
| : | Thickness 0.8 ~ 1,2mm | ||
| ▪ | Table Cloth | : | Black Granite or Phenolic Resin |
| ▪ | Door | : | Sliding type with Clear Glass |
| ▪ | Lamp | : | 1 unit, 18W, 1030Lm, 604mm x dia,26mm |
| ▪ | Blower | : | Chemical Resistant, 1/2 PK, Power 220V |
| ▪ | Blower Pipe | : | PVC 6" Diameter |
| ▪ | Air Quality Meter | : | Temperature -5 °C to +50 °C |
| : | Humidity 0.1 % RH to 99.9 % RH | ||
| : | Carbon Dioxide 0 to 9,999 ppm (NDIR) | ||
| ▪ | Water Installation | : | Water Tap complete pipe PVC Wavin or Rucika |
| ▪ | Water Outlet | : | Chemical Resistant |
| ▪ | Nozzle | : | Polypropylene |
| ▪ | Sink | : | Polypropylene with bottle Trap |
| ▪ | Power Swift | : | ON/OFF for Blower |
| ▪ | Drawer | : | Use to keep the material |
| ▪ | Size | : | (P x L x T) :145 x 60 x 230 cm |
| b. Wet Scrubber | |||
| ▪ | Body material | : | Stainless steel |
| ▪ | frame/support | : | Mild steel |
| ▪ | Circulation | : | Water line PPC and steel pipe |
| ▪ | Nozzle sprayer | : | 360 x 800 x 850 mm |
| ▪ | Support type | : | Wall bracket |
| ▪ | Pipe | : | dia 6" (inlet and outlet) |
| ▪ | Pump | : | 1/2 HP elektromotor 220 watt |
| ▪ | Daya | : | 125 watt |
| ▪ | Daya hisap | : | Max 9 meter |
| ▪ | Daya pancar | : | Max 33 meter Pipa: 1" |
