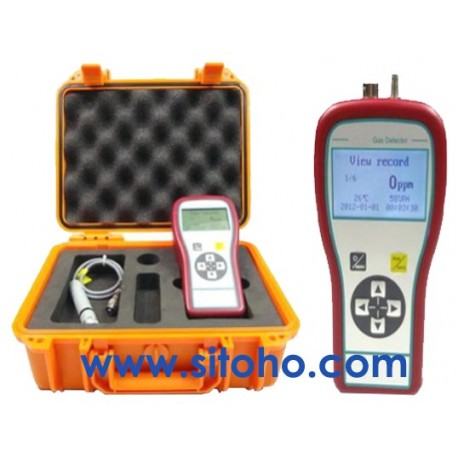

Type : HVX501
Spesifikasi :
| ▪ | Target Gas | : | User selectable over a hundred of VOCs in ambient air |
| ▪ | Detection Range | : | 0~ 2.000 ppm 0 ~ 20.00 ppm, 0 ~ 200.0 ppm or |
| 0 ~ 2000.0 ppm (Isobutylene standard) | |||
| (special custom request for other range possible) | |||
| ▪ | Technology | : | Photo ionization detection |
| ▪ | UV Lamp Energy | : | 10.6 eV (9.6 eV for special custom request) |
| ▪ | Lamp life time | : | > 6000 hours |
| ▪ | Response Time | : | < 6 seconds (T90) |
| ▪ | Sensitivity | : | 1ppb for 2ppm,0.01ppm for 20ppm, 0.025ppm for |
| 200ppm and 0.05ppm for 2000ppm | |||
| ▪ | Humidity Effect | : | < 1 ppm @ 90% RH |
| ▪ | onboard Filter | : | To remove particles and liquids |
| ▪ | Sampling Method | : | Flow through and point sampling with a built-in pump |
| ▪ | Memory | : | Up to 500 sets of data |
| ▪ | Interface | : | USB for data down loading |
| ▪ | Temp. Operating | : | 32ºF to 122ºF (0ºC to 40ºC), |
| < 90%RH (non-condensing), 950 - 10,000 mbar | |||
| ▪ | Power | : | Rechargeable Lithium ion battery |
| (3.7VDC/1250mAh); AC adapter 5VDC/1A | |||
| ▪ | Size / weight | : | 80 (W) × 42 (D) × 158 (H) mm / 230 gr |
