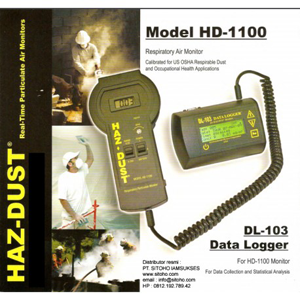

REAL TIME DUST MONITOR
Type : HD-1100
Product : HAZ-DUST (USA)
Spesifikasi :
| a | Personal Particulate Monitors | ||
| • | Display | : | LCD 3,5 digits mg/m³ |
| • | Calibration | : | NIOSH 0600 using ARD Test dust |
| • | Sensing range | : | 0,01~200mg/m³ |
| • | Particle size range | : | 0,01~50µM |
| • | Precision | : | ± 0,02 mg/m³ |
| • | Accuracy | : | ±10% to NIOSH #0600 |
| • | Power | : | 6VDC NiMH rechargeable battery |
| • | Operating time | : | >8 hours |
| • | Charging time | : | 10~12 hours |
| • | Signal output | : | 0~2 volt |
| • | Humidity | : | 95% non-condensing |
| • | Dimension | : | 9" x 3" x 1.5" |
| • | Weight | : | 2 lbs |
| b. | DATALOGGER | ||
| • | Recording time | : | 1 min to 12 hours |
| • | Sampling rate | : | 1 or 2 sec/sample |
| • | Display | : | 4/20 alphanumeric LCD on screen |
| display, TWA, STEL, MAX/MIN | |||
| concentration, Start/Stop time | |||
| • | Memory | : | 21,500 data points |
| • | Output | : | RS-232, 9600 baud |
| • | Battery | : | 7,2v NiMH |
| • | Operating time | : | 12 hours |
| • | Dimension | : | 5.5 x 3.5 x 2.0 in |
| • | Weight | : | 1 lb |
