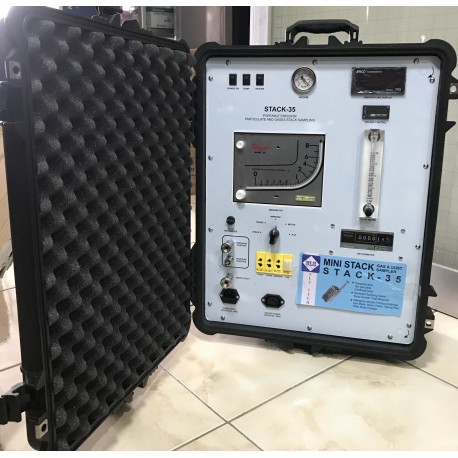

Type : STACK-35
Brand : SLS-Tech
Specification :
| a. | Pompa Penghisap |
| ▪ | Pump KNF VAC, 15 Lpm |
| ▪ | Diagram Vacuum pump |
| ▪ | Free flow 15 lpm, ryton head, EPDM Diaphragm and vales 230v |
| b. | Gas Meter |
| ▪ | Qmax : 2.5 m3/h |
| ▪ | Qmin : 0.016 m3/h |
| ▪ | Sensitive flow rate : 0.003 m3/h |
| ▪ | Pmax : 10 kPa |
| ▪ | Max index vol : 9999 m3 |
| c. | Nosel |
| ▪ | Nozel Set Stainless Stell |
| ▪ | Size : 4mm, 6mm, 8mm, 10mm, 12mm, 14mm and 16mm |
| Including Three 5/8 inch tube nuts | |
| d | Probe |
| ▪ | Linear Glass 36 inc, 8mm |
| ▪ | Pyrex liner with 12/5 Ball Joint |
| e | Tabung Pitot tipe S |
| ▪ | Pitot Tips Extend, SFA-47 SS |
| ▪ | Offset Replacement Pitot Tip 3/8" SS Extended for Use |
| with method 5 Nozzle and SFA-47 | |
| f | Filter |
| ▪ | Stainless Steel Adapter Filter Assembly 47mm, 5/8TU |
| ▪ | Method 17 SS in-Stack Filter unit, 5/8" tube union |
| ▪ | Uses 47mm diameter Filter Element |
| ▪ | Includes with Filter 47mm |
| g | Impinger Set |
| ▪ | Glass Impinger 25 mm (10pcs) |
| ▪ | U-Glass Join (10 pcs) |
| ▪ | S-Glass Join (3 pcs) |
| ▪ | Stainless Steel Clamp adaptor (20 pcs) |
| ▪ | Rack Glass Impinger 8 hole |
| and Box hold for impinger | |
| h | Pipa pengambil contoh uji |
| ▪ | Stainless Steel Sheath Mini Probe Heated |
| ▪ | 3/4 " Diameter |
| ▪ | 36 inch Long |
| ▪ | Stainless Steel pipe probe 5/8" x 150mm (1pcs) |
| ▪ | Stainless steel pipe probe 3/8" x 150mm (1 pcs) |
| i | Pemanas |
| ▪ | In Heater probe 220 VAC, 0.9 meters with cables electical plug |
| j. | Komplit Unit : |
| ▪ | Display, TC, PNL, LED 220v Jenco |
| ▪ | 10 feet Flexible Thermocouple Extention |
| ▪ | Controller Novus Temp RED LED |
| ▪ | Connector Ungrout 12/5 Sockets |
| ▪ | Manometer Molded plastic range 0-80 mm red oil 826 sp gr |
| ▪ | Swith TC 7 Channel |
| ▪ | Gage minihelic, 0-100mm H2O |
| ▪ | Quick Connect Bulkead 1/4 inch to 1/4 inch tube union female SS |
| ▪ | Stainless steel tube union 3/8 inch |
| ▪ | Flowmeter 1-20 liters with valve |
| ▪ | Glass Fiber Filter Paper Diameter 47 mm (100 sheet/box) |
| ▪ | Carrying Case |
