NYLON CYCLONE WITH HOLDER
Produk Detail
NYLON CYCLONE WITH HOLDER

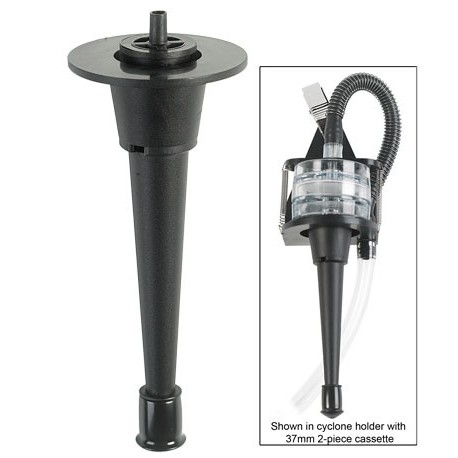

10mm Conductive Nylon Cyclone (Dorr-Oliver style) is used in conjunction with 37mm filter cassettes to separate dust particles by size with the respirable particles being collected on the filter and larger particles being removed. The collection efficiency curve meets the standards set forth by ACGIH/ISO/CEN for a respirable curve with a median 50% cut point of 4µ when operated at a flow rate of 1.7 LPM.
The 10mm Conductive Nylon Cyclone has been designed to precisely match the internal workings of the Dorr-Oliver 10mm nylon cyclones currently on the market. This results in performance characteristics which are identical*, but also provides the added benefit of being static conductive. The external characteristics of the 10mm Nylon Conductive Cyclone have been designed for ease of use and is one of the lightest cyclones users to wear.
Features:
- Meets ACGIH/ISO/CEN respirable curve with a 4.0um cut point at 1.7LPM
- Meets NIOSH requirements for 10mm nylon cyclones as specified in 0600 for nuisance dust and 7500, 7501, 7601 and 7602 for silica dust.
- Static Conductive – Eliminates any possible bias in sampling results from static charging.
- Fully interchangeable with the universal cassette/cyclone holder.
- Lightweight design – only 3.6oz (104g) for the complete assembly including cassette and holder.
Informasi Order :
Nama Media Sampler : Nylon Cylone with Holder
Cat No : ZA0081
Product : Zefon International (USA)
Specification :
Dia Conductive Nylon : 10mm
Dia. Holder Cassette : 37mm or 25mm

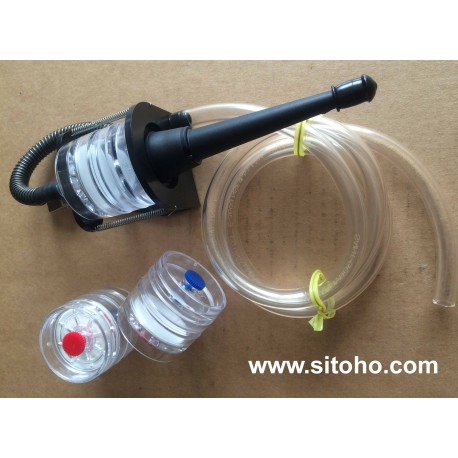

Note : 10mm Conductive Nylon Cyclone with Cassette/Cyclone Holder
