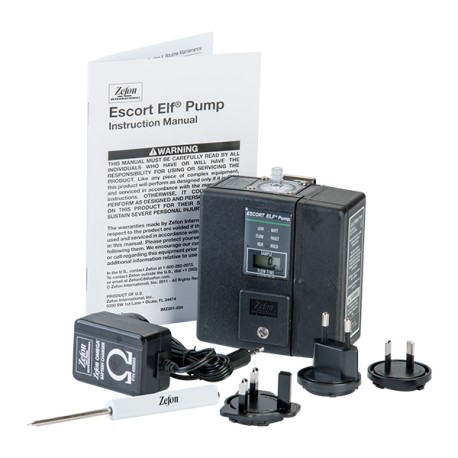

Personal Air Sampling Pump
Type : Escort ELF
Product : Zefon International (USA)
Spesifikasi :
| ▪ |
|
: | Adjust between 0.5 to 3 LPM | |
| ▪ | Flow Indication | : | Liquid Crystal display provides 0.01 lpm resolution | |
| ▪ | Operating range | : | 30 inches of water load up to 2 lpm and 10 inches | |
| up to 3 lpm | ||||
| ▪ | Elapsed timer | : | To 999 minutes in increments of 1 minute. Holds | |
| the last reading after either fl ow blockage or low | ||||
| battery shutdown and when pump is off or in hold | ||||
| mode. | ||||
| ▪ | Operting time | : | Varies with fl ow rate and sampling device loading | |
| ▪ | Power supply | : | 4.8-Volt battery pack of four Nikel metal hydride cell | |
| : | 2.8 amp hours (battery pack capacity) | |||
| : | 14-16 hours (overnight) with omega charger | |||
| ▪ | Dimension | : | 5.7cm x 10.8cm x 10.2cm) with battery pack | |
| ▪ | Weight | : | 652 gr (with battery pack) | |
| ▪ | Approval | : | Escort ELF Sampling Pumps are UL approved as | |
| intrinsically safe for use in hazardous locations – | ||||
| Class I, Groups A, B, C, D; Class II, Groups E, F, | ||||
| and G; and Class III, Division I locations. | ||||
| NIOSH certified for coal mine dust sampling | ||||
| (TC-74-030). MSHA certifi ed as intrinsically safe for | ||||
| underground use (Approval No. 2G-3924-1). | ||||
| ATEX approved LOM 11ATEX2041 (select models). | ||||
| ▪ | Accessories | : | Carrying case | |
| : | 220 V battery charger | |||

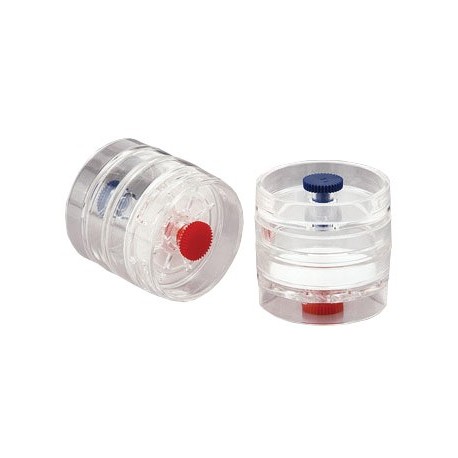

| : | 37mm 3pc Cassette w/ 0.8um MCE (50 pcs/box) | |||
| : | Aluminum Cyclone Kit for 37mm | |||
| : | Vinil Hose | |||
| : | Manual books |
