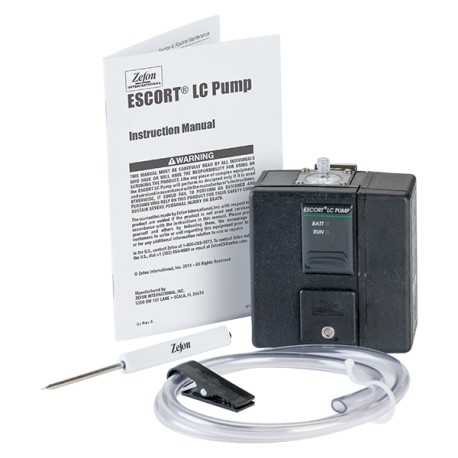

Type : Escort LC
Product : Zefon International (USA)
Spesifikasi :
| ▪ | Flow Rate | : | Flow rate adjustable between 0.5 and 3 lpm |
| ▪ | Operating Flow Control | : | Volumetric flow rate held within ± 10% of |
| set-point over the entire operating range with | |||
| automatic compensation for battery voltage, | |||
| temperature and sample load changes. | |||
| ▪ | Operating Range | : | 5-25 inches of water load up to 2 lpm |
| : | 5-20 inches of water load up to 2.5 lpm | ||
| : | 5-10 inches of water load up to 3 lpm | ||
| ▪ | Operating Temp. Limits | : | 30°-113°F (0°-45°C) |
| : | While charging, 50°-86°F (10°-30°C) | ||
| ▪ | Physical Weight | : | 19 oz. (550 gm), with battery pack. |
| ▪ | Dimensions | : | 2.25” D x 4.25” H x 4” W |
| : | (5.7 cm x 10.8 cm x 10.2 cm), with battery pack. | ||
| ▪ | Power Supply | : | 4.8-volt battery pack of four nickel metal hydride cells. |
| ▪ | Battery Pack Capacity | : | 2.8 amp hours |
| ▪ | Battery Recharge Time | : | 14-16 hours (overnight) with Omega™ Charger. |
| ▪ | Typical Battery Pack Life | : | 300 or more charging cycles |
| ▪ | Approvals | : | UL approved as intrinsically safe for use in hazardous |
| locations, Class I, Groups A, B, C, D; | |||
| Class II, Groups E, F and G; Class III, Division I locations | |||
| ▪ | Accessories | : | Carrying case |
| : | 220 V battery charger | ||
| : | 37mm 3pc Cassette w/ 0.8um MCE (50 pcs/box) | ||
| : | Aluminum Cyclone Kit for 37mm | ||
| : | Vinil Hose | ||
| : | Manual books |
