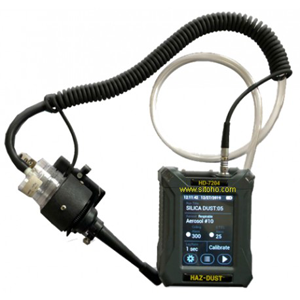

Type : HD-7204
Product : HAZ-DUST (USA)
Spesifikasi :
| ▪ | Sensor Type | : | 90° light scattering 880nm |
| ▪ | Calibration | : | Calibrated against Gravimetric reference NIST traceable- |
| : | SAE fine test dust ISO12103-1 A2 Fine Test Dust | ||
| ▪ | Accuracy | : | +/- 10% to filter gravimetric SAE fine test dust |
| ▪ | Precision | : | +/- 0.02 mg/m3 |
| ▪ | Sensing Range | : | 0.001-500 mg/m3 or 1-500,000 ug/m3 |
| ▪ | PM Size Range | : | 0.1 to 100ųm |
| ▪ | Min. Resolution | : | 1 ug/m3 (0.001 mg/m3 ) |
| ▪ | Zero Stability | : | +/- 0.001 mg/m3 (give ug/m3 equivalent also) over 24 |
| ▪ | Display | : | 3.5”, 24-bit True color, Resistive Color Touch |
| ▪ | Sampling flow rate | : | 1-5 LPM |
| ▪ | Attachable inlets | : | Respirable Inlet GS-3 Cyclone 2.75 LPM |
| : | Inhalable Inlet IOM sampler 2.0 LPM | ||
| : | Thoraric Inlet 2.0 LPM | ||
| : | Impactor PM10, PM5.0, PM4.0, PM2.5 | ||
| ▪ | Data storage | : | 43,200 data points |
| ▪ | Data display | : | Concentrations (mg/m3, ug/m3 ) |
| ▪ | Battery | : | Lithium Ion Pack 7,4V 3350 mAh |
| ▪ | Dimension / weight | : | 3,5" x 2,25" x 4.75" Case / 1,14 lbs |
| ▪ | Complete unit | : | Main unit Personal Dust Monitor |
| : | Calibration Span Reference | ||
| : | Respirable and Inhalable Sampling Head | ||
| : | Black Padded Protective Pouch | ||
| : | Micro USB Cable | ||
| : | Adapter IOM, Adapter GS-3 Cyclone | ||
| : | Zeroing, Cleaning Kit |
