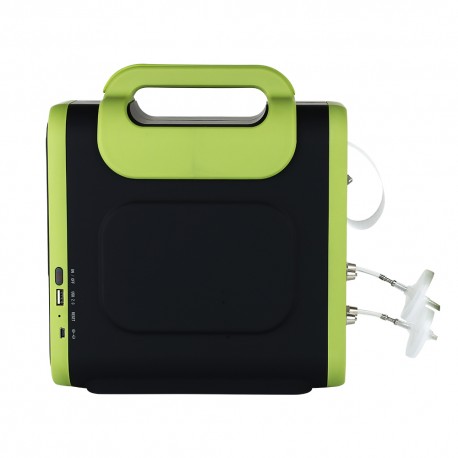

Type : SKY8000-AQ
Specification :
| 1 | Parameters | Range | Resolution | |
| ▪ | PM10 | : | 0-1000µg/m3 | 1µg/m3 |
| ▪ | PM2,5 | : | 0-1000µg/m3 | 1µg/m3 |
| ▪ | SO2 | : | 0-100ppb | 0.01ppb |
| ▪ | NO2 | : | 0-100ppb | 0.01ppb |
| ▪ | NH3 | : | 0-100ppb | 0.01ppm |
| ▪ | H2S | : | 0-50ppm | 0.01ppm |
| ▪ | O3 | : | 0-10ppb | 0.01ppb |
| ▪ | HC | : | 0-50 ppm | 0.01 ppm |
| ▪ | Temperature | : | -40 to 120 °C | 1 °C |
| ▪ | Humidity | : | 0-100 %RH | 1 %RH |
| 2 | Technical Data | |||
| ▪ | Detection Principle | : | Electrochemical, PID, Laser, Thermosensitive, | |
| Humidity Sensitivity | ||||
| ▪ | Display | : | Formula, gas concentration data, measurement trend | |
| curve gas curve, battery, time, t emperature,humidity, | ||||
| pressure (optional), pump condition, wireless status, | ||||
| printer status, screen shot status | ||||
| ▪ | Alarm | : | Buzzer, red LED and alarm status on the display, fault alarm, | |
| pump abnormal alarm, low battery alarm | ||||
| ▪ | Data storage | : | Independent SD memory card, Max.32G, measurement data | |
| can be record automatically, customizable record time interval | ||||
| ▪ | Data transmission | : | Download the data by U-disk with one key | |
| ▪ | Print function | : | internal bluetooth printer | |
| ▪ | Print content | : | Text, graphics, one-dimensional code, two-dimensional code, | |
| curves, characters, etc. | ||||
| ▪ | Pump flow rate | : | 10 grades adjustable, flow range: 0-500 cc/Min | |
| ▪ | Humidity | : | 0～95%RH（no condensation） | |
| ▪ | Temperature | : | -40℃~+70℃ ，Optional gas sampling gun, can detect | |
| up to 1200 degrees gas concentration | ||||
| ▪ | Screen | : | 3.5-inch hd LCD screen with resolution 320* 480 | |
| ▪ | Size/weight | : | 260 x 230 z 120mm / 3700g | |
| ▪ | Battery | : | Large capacity rechargeable lithium battery,5400mAh/11.1V | |
| (internal printer type) or 10000mAh/3.7V (external printer type） | ||||
| working hours are more than 32h with single gas and | ||||
| 24h with six gases togethe | ||||
