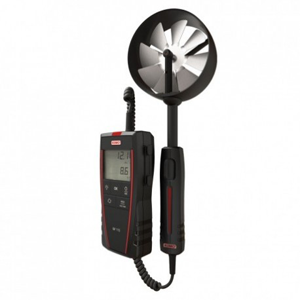

| Portable Vane Probe Thermo-Anemometer | |||
| Type : LV-110 (Kimo-Francis) | |||
| Spesifikasi : | |||
| ▪ | Air velocity | : | 0.3 ~ 35 m/s (m/s, fpm, km/h) |
| Accuracy | : | 0.3 ~ 3 m/s : ±3% of reading ±0.1 m/s | |
| : | 3.1 ~ 35 m/s : ±1% of reading ±0.3 m/s | ||
| Resolution | : | 0.01 m/s or 0.1 m/s | |
| ▪ | Airflow | : | 0 ~ 99 999 m³/h (m³/h, cfm, l/s) |
| Accuracy | : | ±3% of reading ±0.03 * area (cm²) | |
| Resolution | : | 1 m³/h | |
| ▪ | Temperature(°C, °F) | : | -20 ~ +80 °C |
| Accuracy | : | ±0.4 % of reading ±0.3 °C | |
| Resolution | : | 0.1 °C | |
| ▪ | Measuring element | : | Air velocity : Hall effect sensor |
| : | Ambient temperature : NTC sensor | ||
| ▪ | Vane probe | : | Ø 100 mm |
| ▪ | Display | : | 4 lines, LCD technology. Sizes 50 x 36 mm |
| : | 2 lines of 5 digits with 7 segments (value) | ||
| : | 2 lines de 5 digits with 16 segments (unit) | ||
| ▪ | Housing | : | ABS, protection IP54 |
| ▪ | Keypad | : | 5 keys |
| ▪ | Conformity | : | Directives EMC 2004/108/CE and EN 61010-1 |
| ▪ | Power supply | : | 4 batteries AAA LR03 1.5 V |
| ▪ | Languages | : | France, English |
| ▪ | Weight | : | 390 g |
| ▪ | Complate unit | : | Vane probe, certificate of calibration, |
| manual book dan carying case. | |||
