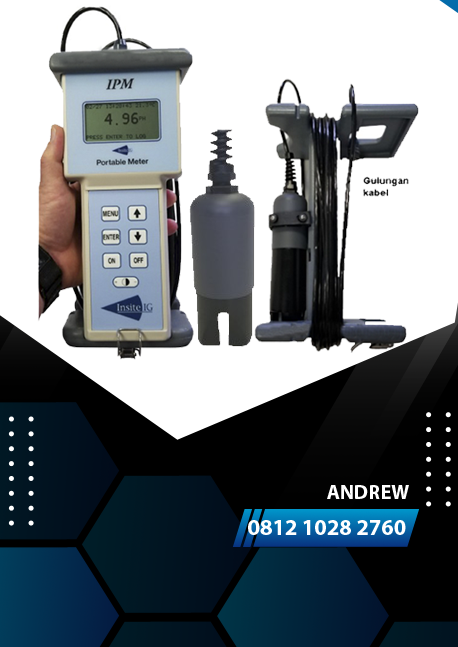

Type : IPM PSS-20 SS
Product : Insite IG - USA
Specification :
| ▪ | Measuring range | : | 250 ~ 30.000 mg/l |
| ▪ | Accuracy | : | 5% of reading or ± 100 mg/l |
| ▪ | Repeatability | : | ± 1% of the reading or |
| ± 2 mg/l wichever is greater | |||
| ▪ | Respon time | : | 95% in under 60 second |
| ▪ | Temperature Range | : | o to 65 degrees C |
| ▪ | Sensor Check | : | Automatic self diagnostics |
| ▪ | Output | : | RS-232 serial |
| ▪ | Memory Backup | : | Yes |
| ▪ | Display | : | LCD graphic display with UV protection |
| : | Contrast adjustment via keypad | ||
| : | on demand backlighting | ||
| ▪ | Sensor Cable length | : | 20 feet |
| ▪ | Ambient temperature | : | -40 ˚C to 55 ˚C |
| ▪ | Ambient Humidity | : | 0 to 100 % |
| ▪ | Enclosure Rating | : | NEMA 4X |
| ▪ | Wetted Materials | : | Epoxy and polyurethane |
| ▪ | Maximum Pressure | : | 100 psi |
| ▪ | Complete Unit | : | Main Unit, Sensor, Battery Charger |
| : | Mil spec quic disconnet conector, | ||
| : | computer download kit | ||
| : | 250 poin onboard data logger |
