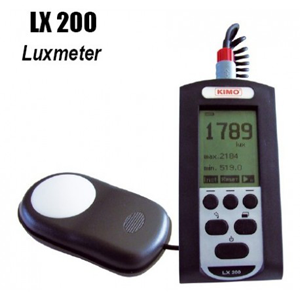

Type : LX-200
Brand : Kimo (Francis)
Specification :
| ▪ | Measuring range | : | from 0.1 to 200 000 Lux |
| : | from 0.01 to 18585 fc | ||
| ▪ | Spectral response | : | as per standard photopic curve |
| : | V(λ) NF C 42 -710 | ||
| : | Class B | ||
| ▪ | Error limit V(λ) (f1) | : | < 6% |
| ▪ | True cosine evaluation (f2) | : | < 6% |
| ▪ | Linearity (f3) | : | < 5% |
| ▪ | Measurement capability* | : | from 04h30 to 99 days |
| ▪ | Display | : | backlit LCD graphic 128x64. |
| ▪ | Working temperature | : | from 0°C to +50°C |
| ▪ | Storage temperature | : | from 0°C to +50°C |
| ▪ | Siize (without sensor) | : | 120 x 58 x 34 mm |
| ▪ | Weight | : | 185 gr (housing+sensor+battery) |
| ▪ | Mini-USB plug | : | for USB power supply adapter |
| and data transfer | |||
| ▪ | Power supply | : | 3 batteries 1.5V type LR3-AAA |
| ▪ | Autonomy | : | 72 hours minimum, contunuous |
| operation | |||
| ▪ | Electromagnetic compatibility | : | according to 89/336/CEE |
| ▪ | Conformity | : | as per RoHS |
