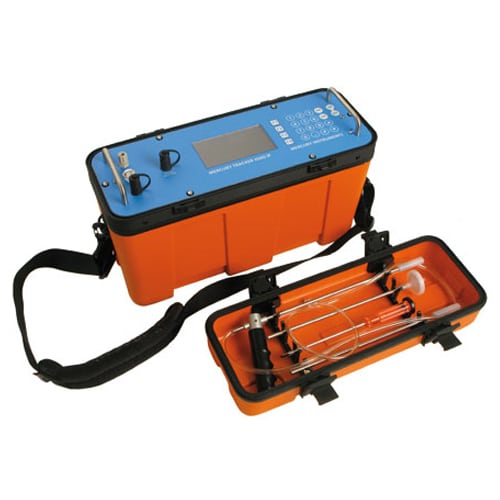

Portable Mercury Vapor Analyzer
Type : Tracker 3000 XS
Product : Mercury Instruments
Specification :
| ▪ | Measurement Principle | : | UV absorption (CVAAS) |
| ▪ | Wavelength | : | 253,7 nm |
| ▪ | UV source | : | Electrodeless low pressure mercury lamp (EDL) |
| ▪ | Stabilization | : | Reference beam method |
| ▪ | Optical cell | : | Fused silica (Suprasil) |
| ▪ | Measuring range | : | 0 - 100μg/m3 |
| : | 0 - 1000μg/m3 | ||
| : | 0 - 2000μg/m3 | ||
| ▪ | Sensitivity | : | 0.1 μg/m3 (0.01 ppb) |
| ▪ | Response time | : | Approx. 1 second, real time measurement |
| ▪ | Alarm | : | Exceedance of concentration, 3 levels programmable |
| ▪ | Status alarm | : | Measuring cell soiled |
| : | Battery state | ||
| : | UV lamp exhausted | ||
| ▪ | Control pad | : | Waterproof membrane keypad |
| ▪ | Measurement display | : | 5.7 inch TFT graphical color display, with LED backlight |
| ▪ | Signal outputs | : | USB and Bluetooth |
| ▪ | Software | : | Mercury Instruments „Hg-Transfer“ included on |
| delivery, export of data: EXCEL® and ASCII format | |||
| ▪ | Data storage | : | Built-in Data logger, internal 2 GB SD-card, |
| automatic time and date stamp, GPS stamp if activated | |||
| ▪ | GPS | : | Built-in, receives US-GPS, Galileo, GLonASS and others |
| for increase in positioning accuracy and improved reception | |||
| Internal power supply | : | Rechargeable 12 V Eneloop batteries with min. | |
| ▪ | capacity of 5 hours and minimized self-discharge, | ||
| quick swap battery packs as option | |||
| ▪ | External power supply | : | 230 VAC/50Hz |
| ▪ | Dimensions | : | 29 x 17 x 14 cm (W x H x D) |
| ▪ | Weight (with battery) | : | Approximately 2.5 kg (included battery pack) |
| ▪ | Complete Unit | : | Certificate Calibration from manufacturer |
| : | Manual books | ||
| : | Carrying Bag |
