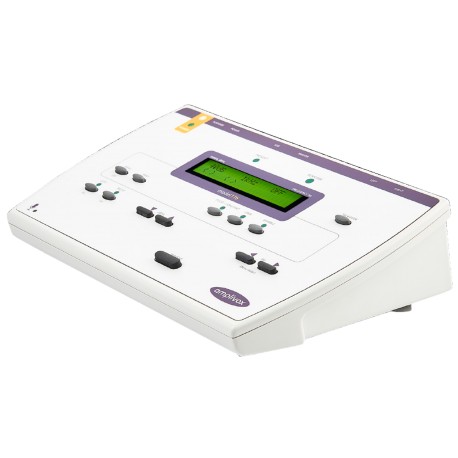

Type : 170 + Audiocups
Specification :
| ▪ | Air conduction audiometry | ||
| Frequency range (kHz) | : | 0.125, 0.25, 0.5, 0.75, 1, 1.5, 2, 3, 4, 6, 8 | |
| Frequency accuracy | : | <1% | |
| Distortion | : | <2% | |
| Output level range | : | -10dBHL to 100dBHL ±3dB | |
| Output level step size | : | 5dB | |
| Tone present | : | Single, pulsed, warble or continuous | |
| Test method | : | Manual and automatic audiometry | |
| ▪ | Communiaction | ||
| Talk over | : | Integrated | |
| ▪ | Data management | ||
| Internal database | : | 12 audiograms | |
| Optional printer | : | Thermal printer | |
| Data transfer | : | Via USB to designated EMR system | |
| Languages | : | English | |
| ▪ | Physical data | : | |
| Graphic display | : | 2 lines of 24 characters | |
| Power | : | Mains: 240Vac 50/60Hz | |
| Dimensions | : | (L x W x H): 252 x 170 x 65mm | |
| Weight | : | 720g / 1.58lbs | |
| ▪ | Safety and standards | ||
| Type | : | Audiometer Type 4 | |
| Safety | : | IEC 60601-1 (plus UL, CSA & EN deviations | |
| EMC | : | IEC 60601-1-2 | |
| Performance | : | IEC 60645-1/ANSI S3.6 | |
| CE Mark | : | Complies to EU Medical Device | |
| Regulation (MDR 2017/745) | |||
| ▪ | Standard Equipment | : | Main unit + Audiocups |
| : | Standard audiometric headset | ||
| : | Patient response switch | ||
| : | Audiogram cards (50) | ||
| : | Power supply with country adaptors | ||
| : | Carry case | ||
| : | USB stick (manuals and amplisuite software) |
