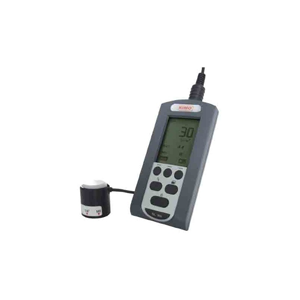

| PORTABLE SOLARIMETER | |||
| Type : SL-200 | |||
| Product : Kimo Instruments | |||
| Specification : | |||
| 1. SL-200 | |||
| Solar irrigation measuring range | : | from 1 W/ m2 to 1300 W/ m2 | |
| Energetic exposure measuring range | : | 1 Wh/ m2 to 500 kWh/ m2 | |
| Frequency of the measure | : | 2 / s | |
| Accuracy | : | 5% of measurement | |
| Calculation frequency ( W/ m2) | : | 1 / min ( average on 60 seconds) | |
| Storage capacity | : | 31 days, 44640 saved recording points | |
| Fast datas download | : | 1000 values/ second | |
| Detection | : | Out of range and sensor default | |
| Operating temperature | : | from -10° C to + 50° C | |
| Storage temperature | : | From -10° C to + 55° C | |
| Package dimensions | : | 58 x 120 x 33 mm | |
| Autonomy | : | More than 72 hours in continuous mode | |
| : | Unlimited with power supply adapter | ||
| Power supply | : | 3 LR3-AAA batteries | |
| Electronic | : | Digital | |
| Electronic card | : | Varnish | |
| Conformity | : | In accordance with RoHS directives | |
