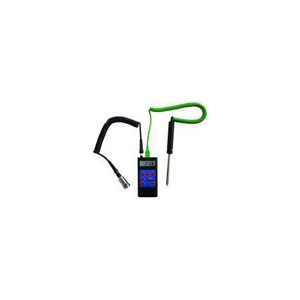

Portable Vibration Meter for Machine
Type : VM-15
Specification :
| 1. Instruments | |||
| ▪ | Vibration acceleration Range | ||
| Range | : | 0,5 .. 200 m/s² | |
| Accuracy | : | ± 5 %, ± 2 digits | |
| Frequency | : | 3 .. 10 000 Hz (-3 dB) | |
| ▪ | Vibration acceleration, highpass filtered | ||
| Range | : | 0,5 .. 200 m/s² | |
| Accuracy | : | ± 5 %, ± 2 digits | |
| Frequency | : | 1000 .. 10 000 Hz (-3 dB) | |
| ▪ | Vibration velocity | ||
| Range | : | 0,5 .. 200 m/s | |
| Accuracy | : | ± 5 %, ± 2 digits | |
| Frequency | : | 3 .. 1000 Hz (-3 dB) | |
| ▪ | Display modes | : | True RMS and true peak-to-peak value |
| selectable by key | |||
| ▪ | Display | : | 3 1⁄2 digits LCD, character height 8.9mm |
| ▪ | Signal output | : | AC signal of selected measuring range, |
| ± 3 V via 100 Ω, 3.5 mm phone jack | |||
| ▪ | Shut-off timer | : | after 1 .. 2 minutes |
| ▪ | Battery | : | 9 V battery (IEC 6F22 / PP3) or |
| accumulator, battery indicator with LED | |||
| ▪ | Battery operating time | : | approximately 20 h with Alkaline battery, |
| approximately 5 h with NiMH accumulator | |||
| ▪ | Operating temperature | : | -4 .. 130 °F, < 95 % relative humidity, |
| no condensation | |||
| ▪ | Dimensions | : | 125 x 60 x 25 mm (with out sensor) |
| ▪ | Weight | : | 150 g (with out sensor) |
