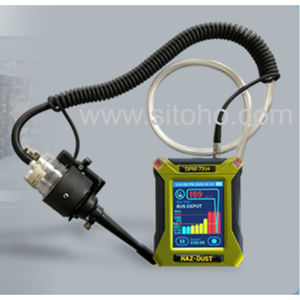

Model : DPM-7204
Product : Haz Dust (USA)
Spesifikasi alat :
| ▪ | Application | : | Diesel Engine Surveys |
| : | Combustion Efficiency | ||
| : | Mining | ||
| : | Transportation (i.e. bus depots, trucking, freight) | ||
| : | Survey tool for MSHA and NIOSH Compliance Programs | ||
| ▪ | Display | : | Alpha-numeric LCD-4 line 20 character mg/m3 |
| ▪ | Operations | : | Four key splash proof membrane switch |
| ▪ | Calibration | : | NIOSH gravimetric reference NIST traceable |
| : | SAE fine test dust | ||
| ▪ | Accuracy | : | ±10% to filter gravimetric |
| ▪ | Particulate Range: | : | <1 to 10µm |
| ▪ | Precision | : | ± 2 µg/m³ |
| ▪ | Sample flow rate | : | 1.0 to 3.3 liter/minute |
| : | (recomended flow 1.7 LPM) | ||
| ▪ | Filter Cassette | : | 37mm disposable |
| ▪ | Recording time | : | 1 second to 21 weeks |
| ▪ | sampling rate | : | 1 second, 1 minute and 10 minute interval |
| ▪ | Concentration range | : | 1-20.000 µg/m³ |
| ▪ | Data storage | : | 21,500 data points |
| ▪ | Security code | : | 4 digit combinations |
| ▪ | Time storage | : | ≥ 5 year |
| ▪ | Real time clock | : | Hours, minutee, second, day, month & year |
| ▪ | Data display | : | Concentration in µg/m³ & TWA, MAX, MIN, STEL, date & time |
| ▪ | Digital output | : | RS-232 |
| ▪ | Software | : | Window TM driven |
| ▪ | Power | : | NiMH Rechargeable Battery |
| ▪ | Operating time | : | ≥ 8 hours |
| ▪ | Charging | : | 10-12 hours |
| ▪ | Dimension/ weight | : | 5.5" x 3.25 x 2.75" (Case) / 2 lbs |
| : | 1.75" x 1.5" (sensor) | ||
| ▪ | Complete unit | : | Respirable Sampling Head |
| : | Inhalable Sampling Head | ||
| : | Calibration Span (Calibration in the field) | ||
| : | Cleaning Kit | ||
| : | Black padded protective pouch with carrying strap | ||
| : | DustComm Pro Software an Instruction manual on USB |
