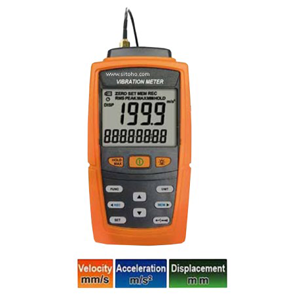

ST-140D (TENMARS)
Spesifikasi :
| ▪ | Datalogger | : | 9999 records capacity |
| ▪ | Connection to PC | : | USB Interface |
| ▪ | Frequency range | ||
| Acceleration | : | 10HZ～1KHZ(LO)；1KHZ～5KHZ(HI) | |
| Velocity | : | 10HZ～1KHZ | |
| Displacement | : | 10HZ～1KHZ | |
| ▪ | Measurement range | ||
| Acceleration | : | 0.1～199.9m/s2 | |
| Velocity | : | 0.1～199.9mm/s | |
| Displacement | : | 0.001～1.999mm | |
| ▪ | Fungtion | ||
| Acceleration/Velocity | : | RMS, Peak, Max Hold, Hold | |
| Displacement | : | Peak-Peak, Max Hold, Hold | |
| ▪ | Accuracy | : | ± (5% reading 2 digits), |
| ref. 80/160Hz, 23°C,<80%RH | |||
| ▪ | Size | : | 156x73x35(LxWxH) |
| ▪ | Power supply | : | 1.5V AAA alkaline battery x 6 |
| ▪ | AC adapter | : | AC 100~240V to DC8~11V/0.5A |
