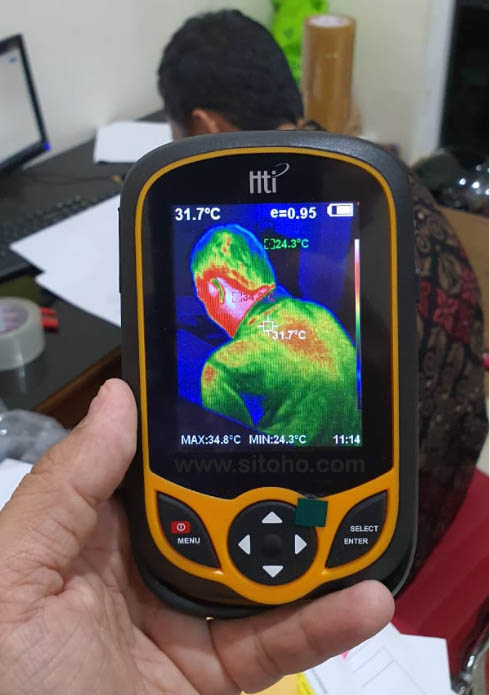

Thermal Imaging Camera
Type : HT-01
Specification :
| ▪ | Infrared Image solution | 220 x 160 | |
| ▪ | Field angle | 27° x 35° | |
| ▪ | Display | 3.2" full angle TFT display screen | |
| ▪ | Visible image resolution | 640*480(300,000 pixel) | |
| ▪ | LCD resolution | 320*240 | |
| ▪ | Shortest focus length | 0.15m | |
| ▪ | Thermal sensitivity | 0.07°C | |
| ▪ | Temperature range | -20~300°C(-4~572°F) | |
| ▪ | Measurement accuracy | ±2%/±2°C | |
| ▪ | Emissivity | Adjustable from 0.01~1.00 | |
| ▪ | frame rate images | 9 Hz | |
| ▪ | Wavelength coverage | 8~14 um | |
| ▪ | Focus mode | Fixed | |
| ▪ | Color palette | Rainbow,iron oxide red,cold color, | |
| black&white,white&black | |||
| ▪ | Storage medium | Built-in 3G(above 20 thousand image | |
| stored) | |||
| ▪ | File format | JPG | |
| ▪ | USB | Micro USB 2.0 | |
| ▪ | Power supply | Built-in chargeable battery | |
| ▪ | Working time | 2~3 hours | |
| ▪ | Automatic power-off time | 5 mins/20 mins/not power off | |
| automatically Selectable | |||
| ▪ | Product size(L*W*H) | 140mm*80mm*28mm / weight : 208g |
