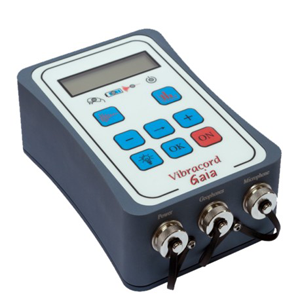

Type : Vibracord Gaia 3
Product : Vibracord SLU (Spanyol)
Specification :
| ▪ | Number of Channel | : | 3 channel |
| ▪ | Sample rate | : | 1024 SPS |
| ▪ | Frequency range | : | 2 ~ 250 Hz (ISEE) |
| : | 1 ~ 315 Hz (din 45669-1) | ||
| ▪ | Trigger mode | : | Automatic |
| ▪ | FFT Calculation | : | Computer |
| ▪ | Data transfer modes | : | SD Card |
| ▪ | Data Visualization | : | Screen |
| ▪ | Screen | : | LCD 4 x 20 characters |
| ▪ | Keyboard | : | 8 keys |
| ▪ | Data storage memory | : | 1000 records |
| ▪ | Intenal power supply | : | Li-Ion rechargeable battery |
| ▪ | Dimensions / Weight | : | 165 x 105 x 55 mm / 0,85 kg |
| ▪ | Environmental | : | IP-65 (Equipment |
| : | IP-68 (Geophone) | ||

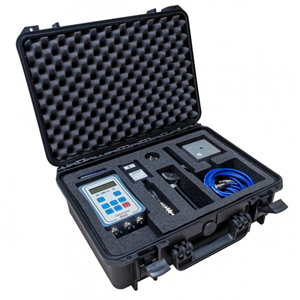

| ▪ | Complete Unit | : | |
| 1 | Recording unit | ||
| 2 | One three-axis bloks geophones | ||
| 3 | Three spikes for fixation | ||
| 4 | External power supply | ||
| 5 | Analysis program | ||
| 6 | User Manual | ||
| 7 | Certificate Calibration | ||
| 8 | Carrying case | ||
| 9 | 1-315 Frequency range with one block of geophone | ||
