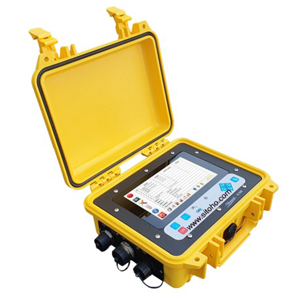

Type : Vibracord Tellus 4 Channel
Product : Vibraquipo (Spanyol)
| ▪ | Number of Channel | : | 4 channel |
| ▪ | Sample rate | : | 2048 SPS |
| ▪ | Frequency range | : | 2 ~ 250 Hz (ISEE) |
| : | 1-315 Hz & 1-80 Hz (DIN 45669-1) | ||
| ▪ | Trigger mode | : | Automatic : Manual : External |
| ▪ | FFT Calculation | : | Equipment and computer |
| ▪ | Data transfer modes | : | USB Disk, Web Server |
| FTP Server, SFTP Server | |||
| ▪ | Data Visualization | : | Screen, Printer, WEB Server, |
| FTP Server, E-mail | |||
| ▪ | Screen | : | 7" TFT Color 800x480 pixels |
| ▪ | Keyboard | : | 8 keys |
| ▪ | Data storage memory | : | Up to 30.000 record |
| ▪ | Intenal power supply | : | Li-Ion rechargeable battery |
| ▪ | Dimensions / weight | : | 370 x 230 x 100 / 3 kg |
| ▪ | Environmental | : | IP-65 (Equipment, IP-68 (Geophone) |
| ▪ | Complete Unit | : | |
| 1 | Recording unit | ||
| 2 | Two three-axis bloks geophones | ||
| 3 | Six spikes for fixation | ||
| 4 | One Microphone for air wave recording | ||
| 5 | Tripod for Microphone | ||
| 6 | External power supply | ||
| 7 | Analysis program | ||
| 8 | User Manual and Certificate Calibration | ||
| 9 | Carrying case | ||
| 10 | Printer Module : thermal printer with 58mm paper roll | ||
| 11 | 1-315 Frequency range (DIN 45669) with Two Block Geophones |
||
